Mechanical anchors for stone

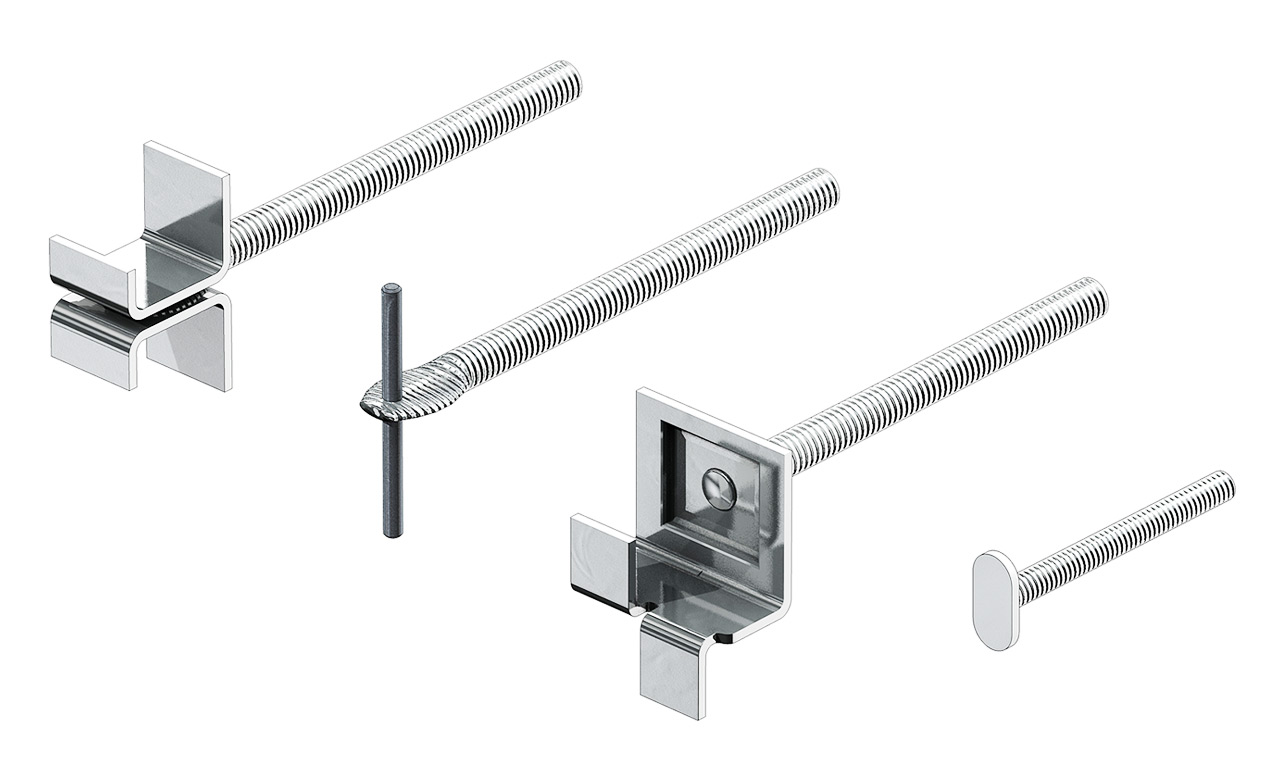

Point anchors
A fixed, non-adjustable anchor that is simple, durable, and economical. It consists of two parts: the clamp that supports the cladding and the rod or screw embedded in the wall.
Manufactured from AISI 304/316 stainless steel, in accordance with specifications (EN 10088-1 and EN 10088-2), they are suitable for all types of cladding, particularly stone.
The anchor will be installed according to the type of substrate:
- Installation with epoxy resins on concrete walls.
- Installation with mesh and polyester resin on solid or perforated brick.
- Available in all our clamp models, as well as in different diameters and lengths, the choice of one or the other will depend on the type of cladding, the loads, and wind conditions.
Point anchors
A fixed, non-adjustable anchor that is simple, durable, and economical. It consists of two parts: the clamp that supports the cladding and the rod or screw embedded in the wall.
Manufactured from AISI 304/316 stainless steel, in accordance with specifications (EN 10088-1 and EN 10088-2), they are suitable for all types of cladding, particularly stone.
The anchor will be installed according to the type of substrate:
- Installation with epoxy resins on concrete walls.
- Installation with mesh and polyester resin on solid or perforated brick.
- Available in all our anchor models, as well as in different diameters and lengths, the choice of one or the other will depend on the type of cladding, the loads, and wind conditions.

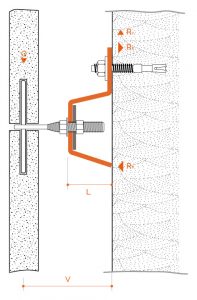

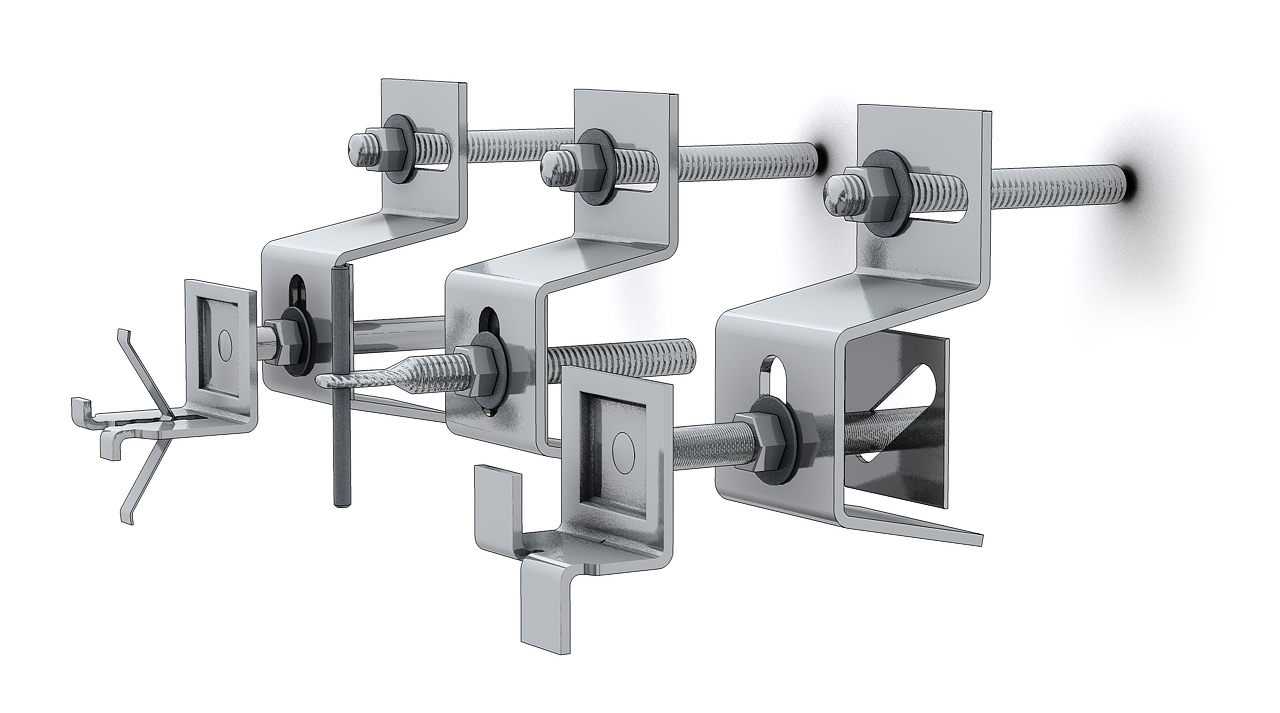

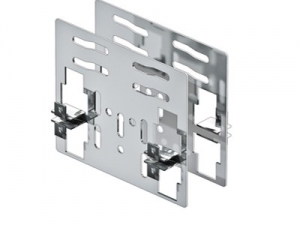

Anchor with 3-dimensional adjustable bracket
Adjustable point anchor supplied with bracket, offering great simplicity and strength.
Made of stainless steel (AISI 304/316, in accordance with EN 10088-1 and EN
10088-2 specifications).
- Thanks to its special design, the CGK bracket is the only one on the market that allows for full adjustment of the anchor in all three planes.
The bracket has two slots that allow for adjustment of the anchorage:
- A horizontal slot at the top allows the bracket to move to the left and right of the hole drilled in the wall.
- The vertical slot in the center of the bracket allows for height and depth adjustment; fine-tuning is achieved by tightening the nut and locknut, allowing for adjustment of the cladding. A pressure washer is used to prevent the anchor from slipping.
- The CGK bracket can accommodate any type of cladding fastening (concealed nail, exposed nail, or pivot).
- The choice of cladding fastening type depends on the cladding type, loads, and wind conditions.

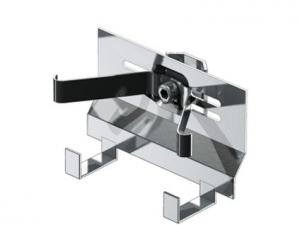

Special Anchors
Special fastener for installing lightweight cladding, allowing for installation with virtually no need for spacing.
• Its simplicity and speed of installation, as well as the final aesthetic result, make it one of the most widely used fasteners in the installation of ventilated facades.
Duo

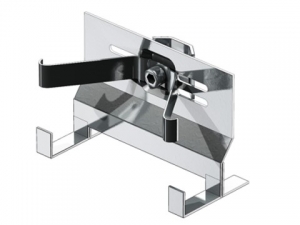

Lintel clamp
Simple

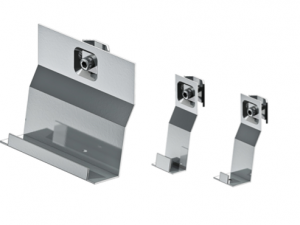

Anchors for lightweight cladding
Hidden Nail
Visible nail

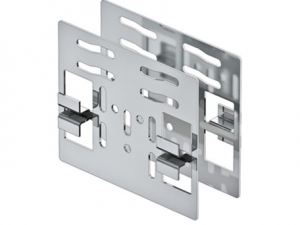

Fishscale Joint
Available for hidden and exposed nails. With this type of fastening, the cladding is overlapped vertically, producing a “fish scale” effect.
• This type of fastening is custom-made, depending on the thickness and overlap between the cladding sections.
Duo
Visible nail – Hidden nail

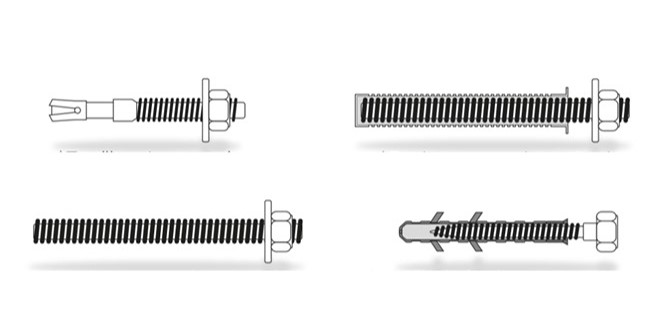

System Mounting
The system allows for different types of mounting. The choice of one mounting system over another will depend on the nature of the walls and supporting structure, as well as the load they will bear.

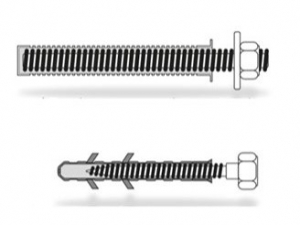

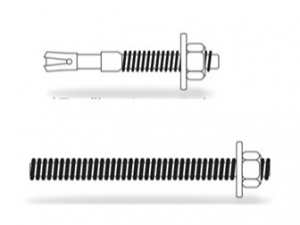

Self-expanding screw /
Threaded rod
